Performance Characteristic


★  The condenser of the foam constant temperature hot and cold water machine adopts thickened internally threaded copper tubes and corrugated aluminum foil fins, with high heat transfer efficiency and energy saving!

★  The foaming constant temperature hot and cold water machine is designed specifically for polyurethane foaming and phenolic foaming, and is used to maintain a constant water temperature for the jacket of material tanks A and B, keeping the foaming raw materials at a constant temperature. Using a dedicated constant temperature controller, as long as the required water temperature is set, the controller automatically controls heating or cooling, maintains a constant water temperature, and has simple operation and high control accuracy. The selection of compressors (such as Copeland, Daikin, Danfoss) and refrigeration electronic control components (such as Danfoss, Emerson, Siemens, etc.) is made of genuine materials with guaranteed quality.

 Application scope
 Technical Parameter

Model		DC-CH3A	DC-CH5A	DC-CH8A-D	DC-CH10A-D	DC-CH15A-T	DC-CH20A-F	DC-CH30A-T	DC-CH40A-F
Horsepower	HP	3 horses	5 horses	8 horses	10 horses	15 horses	20 horses	30 horses	40 horses
Refrigeration capacity	kcal/h	7181	11610	18060	23220	35260	48160	74820	102340
	KW	8.35	13.5	21	27	41	56	87	119
Temperature range ℃		7-50℃
Power supply		380V 50HZ 3PH(Special voltage can be customized)
Refrigerant		R22(Optional refrigerant R407C, R410A)
Condenser	Type	Air cooled condenser (copper tube wrapped with corrugated aluminum foil heat sink)
Fan	Type	High air volume, low-noise external rotor fan
Evaporator	Type	Water tank coil evaporator (optional stainless steel plate heat exchanger or shell and tube evaporator)
	Water tank capacity L	50	62	125	125	240	300	—	—
Electric heater	Power KW	9	9	12	12	24	24	36	36
Chilled water pump	Power KW	0.37	0.37	0.75	0.75	1.5	1.5	2.2	3.7
	Flow rate of chilled waterm³/h	1.5-2	2-3.5	4-5	6-7	9-10	11-15	18-21	22-28
Import and export of chilled waterinch		1/2"	1"	1-1/2"	1-1/2"	2"	2"	2-1/2"	3"
Appearance Size	Length D mm	925	1155	1255	1255	1800	1910	2100	2148
	Width W mm	575	655	805	805	1050	1100	1250	1248
	Height H mm	1085	1082	1738	1738	1750	1890	2186	2159
Protection control device		Delay protection, flow protection, compressor overheating protection, refrigerant high and low pressure protection, overcurrent protection, phase sequence/phase loss protection, overload protection, over temperature protection, etc



1. Selection Description: DC-CH10A - D "DC" Multi Library Company Code, "CH" represents constant temperature hot and cold water machine, "10" represents 10 horsepower, "A" represents air-cooled, "D" dual system 2 compressors, "T3" compressor, "F" four compressors.
2. The cooling capacity parameters are based on: chilled water inlet and outlet temperatures of 12 ℃/7 ℃, and cooling inlet and outlet air temperatures of 30 ℃/35 ℃.
3. Scope of work: The temperature range of the chilled water is 7 ℃ to 50 ℃, and the temperature difference between the inlet and outlet of the chilled water is 3 ℃ to 8 ℃. The operating environment temperature cannot exceed 40 ℃, and high-temperature models should be selected if the ambient temperature is higher than 40 ℃.
4. Our company reserves the right to change the above parameters or dimensions without prior notice.

 Application

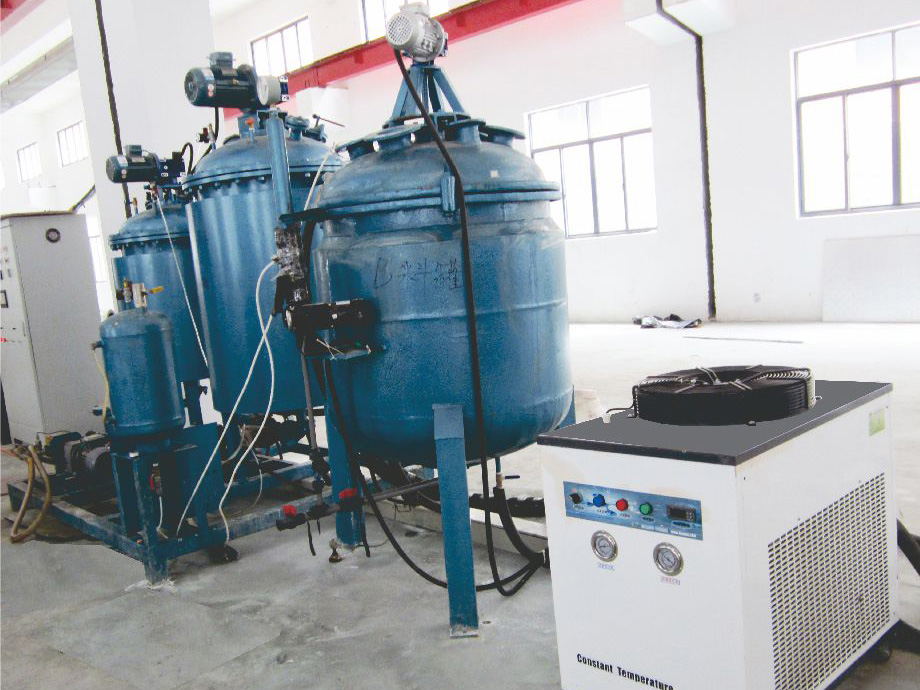

Application of Foam Constant Temperature Cold and Hot Water Machine in Polyurethane PU Foam Equipment
Application of foaming constant temperature cold and hot water machine in phenolic PF foaming equipment
